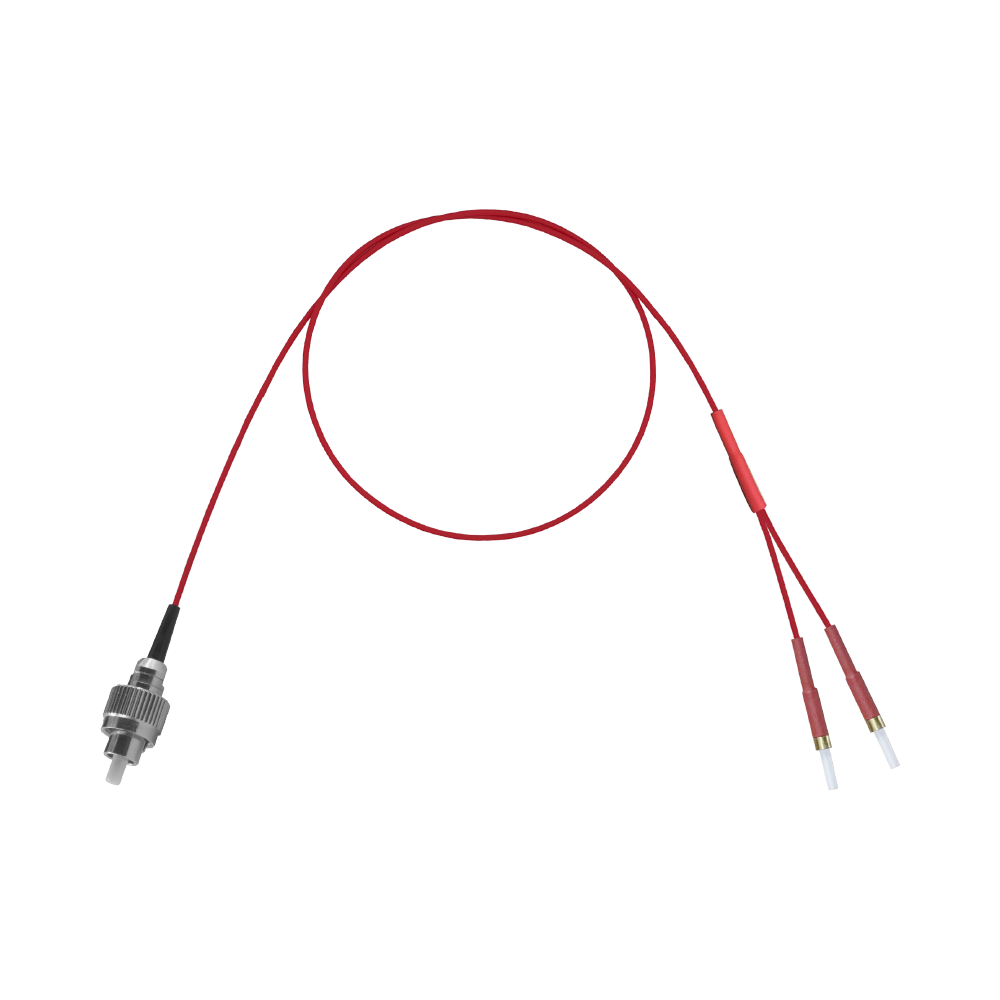

Bundled Fiber Optic (1x2)

  • Fiber Core
  • Fiber Length (m)
  • Connectors

50.40 € 50.40 € 50.4 EUR

¥ 360.00

This combination does not exist.

Inper offers a lightweight mono fiber cable with a standard FC or SMA connector on one end for connecting a light source  or fiber photometry system, and  Ø1.25 mm or Ø 2.5 mm ferrule on the other end for connecting fiber optic cannula via a mating sleeve.

Inper provides optogenetic fiber of various standard lengths including 0.5m, 1m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m 4.0m, 5m. For other custom requirements, please contact support@inper.com

Inper also offers dual or multiple fiber cables

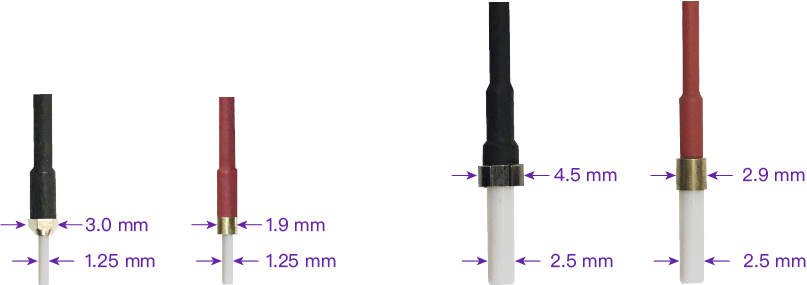

Super miniaturized ferrule tailstock

Inper have optimized the ferrule tailstock to make it smaller.

The out diameter of 1.25 mm ferrule tailstock is only 1.9 mm, and the out diameter of 2.5 mm ferrule tailstock only 2.9 mm, which is more suitable for close-range multi-site recording and stimulation during experiment.

The tailstock is not-magnetic, compatible with fMRI experiments.

Odoo • Text and Image

Mating sleeve and optogenetic fiber compatibility

Inper offers a lightweight optogenetic fiber with a standard FC/PC or SMA connector on one end for connecting an LED or laser source in an optogenetics experiment (see example device diagram), and Ø1.25 mm or Ø2.5 mm ferrule on the other end for connecting Fiber Optic Cannula via a mating sleeve.

Specifications for Bundled Fiber Optic (1x2)

Fiber Core 100/0.22 or 200/0.22 or 200/0.37 or 300/0.37 or 400/0.37 or 200/0.50 or 400/0.50
Fiber Length (m) 1 or 1.5 or 2 or 3 or Others
Connectors FC - 1.25mm White Ferrule or FC - 2.5mm White Ferrule or FC - 1.25mm Black Ferrule or FC - 2.5mm Black Ferrule
