单通道光纤

  • 光纤型号
  • 光纤长度(m)
  • 接头

25.20 € 25.20 € 25.2 EUR

¥ 180.00

This combination does not exist.

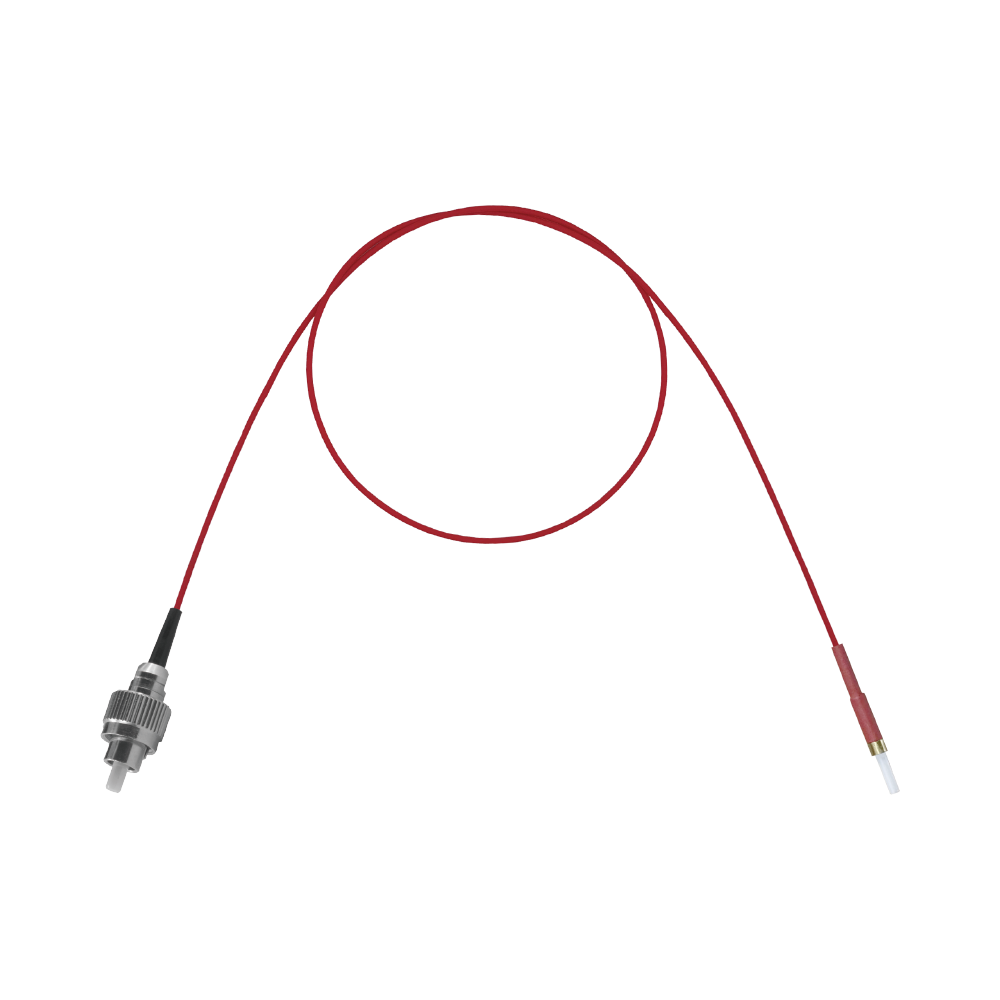

Inper offers lightweight mono fiber patch cords with a standard FC or SMA connector on one end for connecting a light source or fiber photometry system, and a Ø1.25 mm or Ø2.5 mm ferrule on the other end for connecting fiber optic cannula via a mating sleeve.

Inper provides optogenetic fiber patch cords of various standard lengths including 0.5m, 1m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m 4.0m, 5m. For other customized requirements, please contact us by email.support@inper.com

Inper also offers Dual and Multiple-channel fiber patch cords.

Super miniaturized ferrule tailstock

Inper has optimized the ferrule tailstock to make it smaller.

Inper has optimized the ferrule tailstock to make it smaller. The outer diameter 1.25 mm ferrule tailstock is only 1.9 mm, and the outer diameter 2.5 mm ferrule tailstock only 2.9 mm, making them more suitable for close-range multi-site recording and stimulation during experiment.

The tailstock is not-magnetic, and is thus compatible with fMRI experiments.

Odoo • Text and Image

Mating sleeve and optogenetic fiber compatibility


Inper offers lightweight optogenetic fiber patch cords with a standard FC/PC or SMA connector on one end for connecting  LED or laser source in optogenetics experiments (see example device diagram), and Ø1.25 mm or Ø2.5 mm ferrule on the other end for connecting Fiber Optic Cannula via a mating sleeve.

Specifications for 单通道光纤

光纤型号 100/0.22 or 200/0.22 or 200/0.37 or 300/0.37 or 400/0.37 or 200/0.50 or 400/0.50 or 1000/0.37
光纤长度(m) 0.5 or 1 or 1.5 or 2 or 3 or 5 or 其它长度
接头 FC - 1.25mm 白色插芯 or FC - 2.5mm 白色插芯 or FC - 1.25mm 黑色插芯 or FC - 2.5mm 黑色插芯
